40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

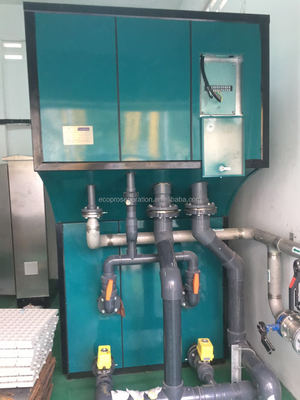

Großes Bild : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Produktdetails:

Herkunftsort:	Shanghai, China
Markenname:	ECOPRO

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	$36,897

Kontakt

Ausführliche Produkt-Beschreibung

Produktivität:	40m3/h	Gewicht:	2298 kg
Verarbeitungstyp:	Filtration	Leistung:	3 kW, 30 kW, 20 kW
Stromspannung:	220 V, 380 V, 110 V.	Kapazität:	40m3/h
Elektrodengewicht:	11500 Kilogramm	Leeres Gewicht:	3500 kg
Operation Gewicht:	31000 kg	Behandlungskapazität:	1m3/h
Stromverbrauch:	3kw/h	Dimension:	10006501500 mm
Elektrodengewicht:	650 kg	Leeres Gewicht:	400 kg
Operation Gewicht:	1500 kg
Hervorheben:	40m3/h electrocoagulation wastewater system , electrocoagulation treatment system 3-30 kW , industrial wastewater electrocoagulation system

Electrocoagulation Wastewater Treatment System

Customized industrial wastewater treatment equipment utilizing electrocoagulation technology for efficient contaminant removal.

Electrocoagulation Water Treatment Process

Our electrocoagulation system utilizes metal hydroxide produced by soluble metal anodes (typically aluminum or iron) during flocculation to effectively remove contaminants from wastewater.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Fe→Fe²⁺+2e

Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e. The nascent oxygen [O] provides strong oxidation comparable to UV, H₂O₂ and O₃.

2H⁺+2e→2[H]→H₂

Cathode reduction produces nascent hydrogen that breaks chemical bonds, COD, chromophore functional groups and multi-chain compounds.

These oxidation and reduction reactions occur continuously on the electrode plates.

System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Enhanced safety: Embedded isolated voltage circuit with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to dynamically adjust current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating need for polymer additives

About Shanghai Ecopro Environmental Engineering Co., Ltd.

Established in 2017, we specialize in comprehensive water and wastewater treatment equipment and separation services. Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
