40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

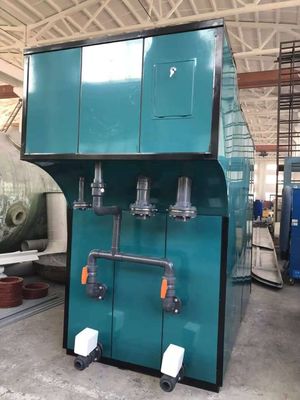

Großes Bild : 40m3/h Electrocoagulation Wastewater Treatment System 3-30 kW

Produktdetails:

Herkunftsort:	Shanghai, China
Markenname:	ECOPRO

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	$36,897

Kontakt

Ausführliche Produkt-Beschreibung

Produktivität:	40m3/h	Gewicht:	2298 kg
Verarbeitungstyp:	Filtration	Leistung:	3 kW, 30 kW, 20 kW
Stromspannung:	220 V, 380 V, 110 V.	Kapazität:	40m3/h
Elektrodengewicht:	11500 Kilogramm	Leeres Gewicht:	3500 kg
Operation Gewicht:	31000 kg	Behandlungskapazität:	1m3/h
Stromverbrauch:	3kw/h	Dimension:	10006501500 mm
Elektrodengewicht:	650 kg	Leeres Gewicht:	400 kg
Operation Gewicht:	1500 kg
Hervorheben:	40m3/h electrocoagulation wastewater system , electrocoagulation treatment system 3-30 kW , industrial wastewater electrocoagulation system

Wastewater Treatment Station Electrocoagulation Wastewater Treatment

Electrocoagulation Equipment Electrocoagulator Electrocoagulation Water Treatment

Electrocoagulation system is a wastewater treatment process that utilizes metal hydroxide produced by soluble metal anodes during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron, and other readily available, inexpensive metals.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kw/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe²⁺+2e

Anodizing reaction: 2OH⁻→2[O]+2e→O₂+2e. The nascent oxygen [O] has strong oxidation function comparable to UV, H₂O₂ and O₃.

Cathode reduction: 2H⁺+2e→2[H]→H₂. Nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

These oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide power supply adaptability: 220V-480VAC range available
Safe and convenient: Embedded isolated voltage circuit ensures electrical safety; multiple abnormal indications and protections (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.)
Automatic control: Automatically detects ion state in water to adjust current and voltage
Energy efficient: Fe(OH)₂ and Fe(OH)₃ are excellent coagulants. No polymer required is a major feature

Company Introduction

Shanghai Ecopro Environmental Engineering Co., Ltd., the flagship company established in 2017, focuses on one-stop water & wastewater treatment equipment and separation service environment solutions. As a professional environmental engineering company, we adhere to craftsmanship spirit to provide industry with equipment, services, and systematic solutions.

Our product range includes static screens, rotary drum screens, polymer dosing systems, DAF systems, electrochemistry systems, screw presses, plate filter presses, sludge dryers, Mutag Biochips, sodium hypochlorite generators, and various pumps.
