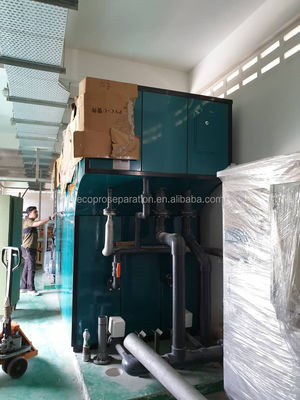

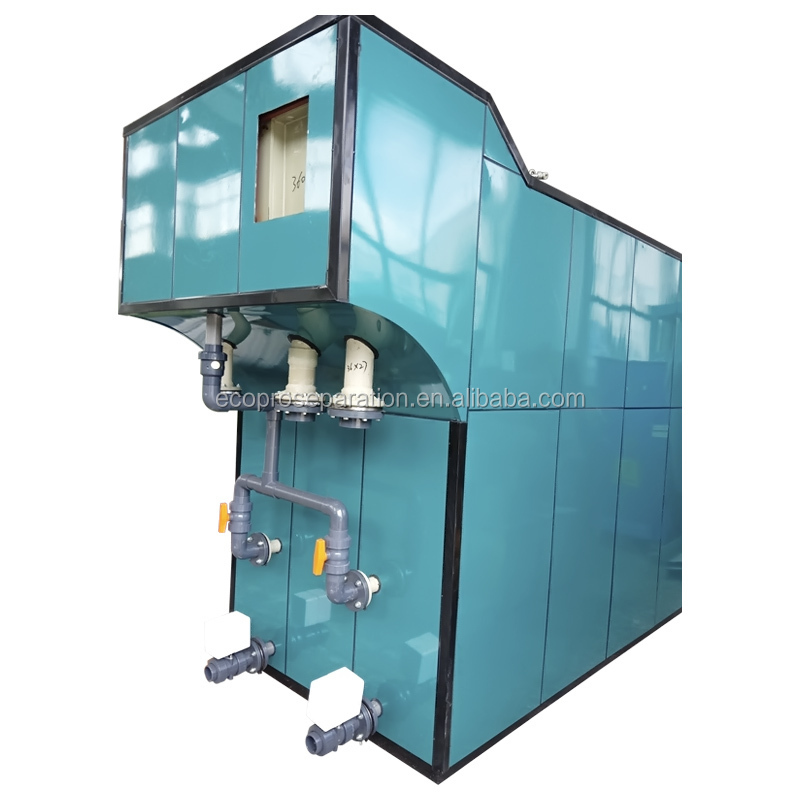

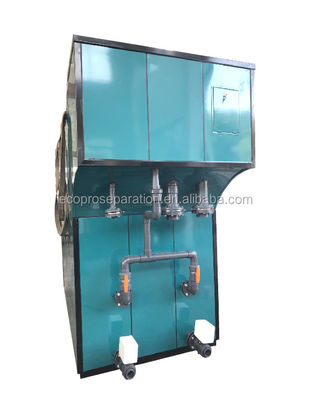

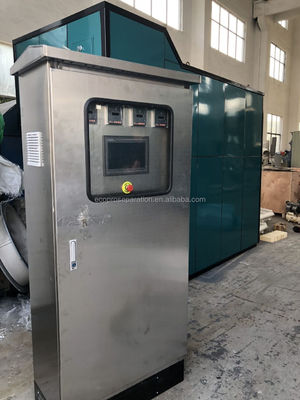

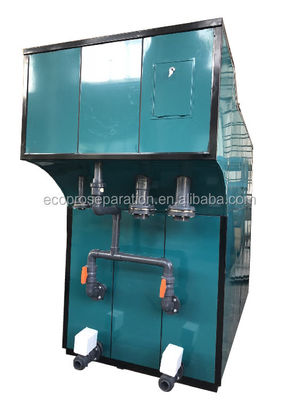

40m3/h Electrocoagulation Wastewater Treatment System 220V-380V

Großes Bild : 40m3/h Electrocoagulation Wastewater Treatment System 220V-380V

Produktdetails:

Herkunftsort:	Shanghai, China
Markenname:	ECOPRO

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	$38,627

Kontakt

Ausführliche Produkt-Beschreibung

Produktivität:	40m3/h	Gewicht:	2298 kg
Verarbeitungstyp:	Filtration	Leistung:	3 kW, 30 kW, 20 kW
Stromspannung:	220 V, 380 V, 110 V.	Kapazität:	40m3/h
Elektrodengewicht:	11500 Kilogramm	Leeres Gewicht:	3500 kg
Operation Gewicht:	31000 kg	Behandlungskapazität:	1m3/h
Stromverbrauch:	3kw/h	Dimension:	10006501500 mm
Elektrodengewicht:	650 kg	Leeres Gewicht:	400 kg
Operation Gewicht:	1500 kg
Hervorheben:	40m3/h electrocoagulation wastewater system , electrocoagulation wastewater treatment 220V-380V , industrial electrocoagulation system with warranty

Industrial Laundry Water Treatment Electrocoagulation Wastewater Treatment Equipment

Electrocoagulation Equipment Electrocoagulator Electrocoagulation Water Treatment

Electrocoagulation system is a wastewater treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material typically uses aluminum, iron and other readily available and inexpensive metals.

Technical Specifications

Treating Capacity	1m3/h
Power Consumption	3kw/h
Dimension	10006501500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe2++2e

Anodizing reaction: 2OH-→2[O]+2e→O2+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.

Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

Wide adaptability of power supply: 220V-480VAC range is available.

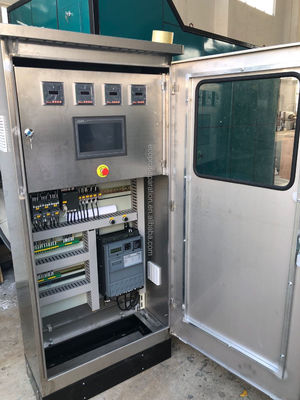

Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.).
Automatic control: can automatically detect the ion state in the water to adjust the current, voltage.
Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.
