40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

Alle Produkte

Aufgelöste Luftflotation (73)

Schlammentwässerungsmaschine (48)

Ro-System (36)

Industrieller Schirm (43)

Polymer-Dosierungssystem (27)

Lamella-Klarifikationssystem (35)

Statischer Mischer (42)

Mutag-Biochip (19)

Elektrokoagulationssystem (16)

Bescheinigung

China Shanghai Ecopro Environmental Engineering Co., Ltd. zertifizierungen

Ich bin online Chat Jetzt

40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

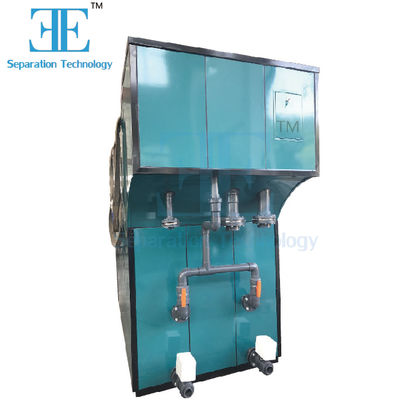

Großes Bild : 40m3/h Electrocoagulation System for Industrial Wastewater 3-30 kW

Produktdetails:

Herkunftsort:	Shanghai, China
Markenname:	ECOPRO

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	$36,897-69,583

Kontakt

Ausführliche Produkt-Beschreibung

Produktivität:	40m3/h	Gewicht:	2298 kg
Leistung:	3 kW, 30 kW, 20 kW	Stromspannung:	220 V, 380 V, 110 V.
Elektrodengewicht:	11500 Kilogramm	Leeres Gewicht:	3500 kg
Operation Gewicht:	31000 kg	Behandlungskapazität:	1m3/h
Stromverbrauch:	3kw/h	Dimension:	10006501500mm
Elektrodengewicht:	650 kg	Leeres Gewicht:	400 kg
Operation Gewicht:	1500 kg	Spannungsbereich:	220V bis 480VAC
Kernkomponenten:	Getriebe, Pumpe, Lager, Motor
Hervorheben:	40m3/h electrocoagulation wastewater system , industrial electrocoagulation system 3-30 kW , electrocoagulation system for industrial wastewater

Electrical Coagulation System (EC) for Industrial Wastewater Treatment

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide produced by soluble metal anodes during flocculation to effectively remove contaminants from water. The system primarily uses aluminum or iron anodes, which are cost-effective and readily available.

Technical Specifications

Parameter	Value
Treating Capacity	1m³/h
Power Consumption	3kW/h
Dimension	1000×650×1500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

The system operates through three key electrochemical processes:

Electrochemical reaction: Fe→Fe²⁺+2e⁻

Anodizing reaction: 2OH⁻→2[O]+2e⁻→O₂+2e⁻

Cathode reduction: 2H⁺+2e⁻→2[H]→H₂

These oxidation and reduction reactions continuously occur on the plates, providing effective wastewater treatment through:

Strong oxidation from nascent oxygen [O] (comparable to UV, H₂O₂, and O₃)
Powerful reduction from nascent hydrogen that breaks chemical bonds
Effective removal of COD, chromophore functional groups, and multi-chain compounds

System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Safe and convenient: Embedded isolated voltage circuit ensures electrical safety with comprehensive protection against phase loss, overload, overcurrent, overvoltage, and zero voltage conditions
Automatic control: Detects ion state in water and automatically adjusts current and voltage
Energy efficient: Utilizes Fe(OH)₂ and Fe(OH)₃ as natural coagulants, eliminating the need for additional polymers

Company Profile

Shanghai Ecopro Environmental Engineering Co., Ltd., established in 2017, specializes in comprehensive water and wastewater treatment equipment and separation services. As a professional environmental engineering company, we are committed to providing high-quality equipment, services, and systematic solutions. Our product range includes:

Static and rotary drum screens
Polymer dosing systems
DAF systems
Electrochemistry systems
Screw presses and plate filter presses
Sludge dryers
Mutag Biochip technology
Sodium hypochlorite generators
Various pump systems

Product Packaging
