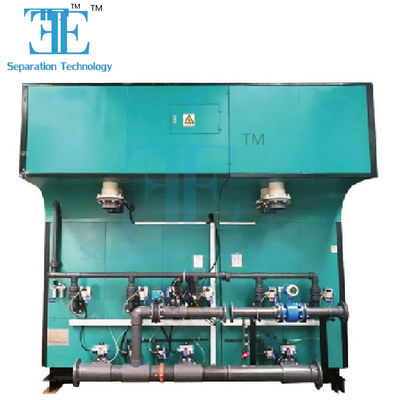

Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Großes Bild : Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Produktdetails:

Herkunftsort:	Shanghai, China
Markenname:	ECOPRO

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	$36,897

Kontakt

Ausführliche Produkt-Beschreibung

Produktivität:	5m3/h	Gewicht:	1900 kg
Verarbeitungstyp:	Filtration	Leistung:	1 kW
Stromspannung:	220 V, 380 V, 110 V.	Kapazität:	5m3/h
Elektrodengewicht:	1900 kg	Leeres Gewicht:	1900 kg
Operation Gewicht:	7800 KG	Kernkomponenten:	Motor
Stromversorgungsbereich:	220V bis 480VAC	Anodenmaterial:	Aluminium, Eisen
Oxidationsfunktion:	Naszierender Sauerstoff [O]	Reduktionsfunktion:	naszierender Wasserstoff [H]
Automatische Steuerung:	Ja
Hervorheben:	Electrocoagulation System 5m3/h capacity , Electrocoagulation System for wastewater treatment , Electrocoagulation System with high capacity

Electrocoagulation System for Wastewater Treatment

Our electrocoagulation system is an advanced wastewater treatment solution that utilizes metal hydroxide flocculation to effectively remove contaminants. The system employs aluminum or iron anodes to create an efficient and cost-effective purification process.

System Fabrication Process

System Operation Process

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe2++2e
Anodizing reaction: 2OH→2[O]+2e→O2+2e
Cathode reduction: 2H++2e→2[H]→H2

These oxidation and reduction reactions occur continuously on the plates, providing powerful treatment capabilities.

Key System Features

Wide power supply adaptability: Operates within 220V-480VAC range
Enhanced safety: Embedded isolated voltage circuit with comprehensive protection (phase loss, overload, overcurrent, overvoltage, zero voltage)
Automatic control: Detects ion state in water to automatically adjust current and voltage
Energy efficient: Utilizes Fe(OH)2 and Fe(OH)3 as natural coagulants, eliminating need for polymer additives

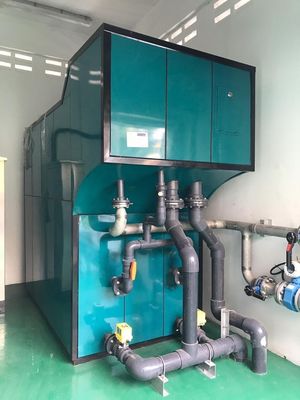

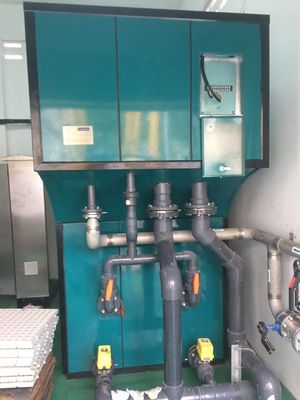

System Work Site Examples

Product Packaging
